HTTP

How To Return Error Details From REST APIs

~ Ray Sinnema ~ Leave a comment

errorThe HTTP protocol uses status codes to return error information. This facility, while extremely useful, is too limited for many use cases. So how do we return more detailed information?

There are basically two approaches we can take:

  1. Use a dedicated media type that contains the error details
  2. Include the error details in the used media type

Dedicated Error Media Types

There are at least two candidates in this space:

  1. Problem Details for HTTP APIs is an IETF draft that we’ve used in some of our APIs to good effect. It treats both problem types and instances as URIs and is extensible. This media type is available in both JSON and XML flavors.
  2. application/vnd.error+json is for JSON media types only. It also feels less complete and mature to me.

A media type dedicated to error reporting has the advantage of being reusable in many REST APIs. Any existing libraries for handling them could save us some effort. We also don’t have to think about how to structure the error details, as someone else has done all that hard work for us.

However, putting error details in a dedicated media type also increases the burden on clients, since they now have to handle an additional media type.

Another disadvantage has to do with the Accept header. It’s highly unlikely that clients will specify the error media type in Accept. In general, we should either return 406 or ignore the Accept header when we can’t honor it. The first option is not acceptable (pun intended), the second is not very elegant.

Including Error Details In Regular Media Type

We could also design our media types such that they allow specifying error details. In this post, I’m going to stick with three mature media types: Mason, Siren, and UBER.

Mason uses the @error property:

{
  "@error": {
    "@id": "b2613385-a3b2-47b7-b336-a85ac405bc66",
    "@message": "There was a problem with one or more input values.",
    "@code": "INVALIDINPUT"
  }
}

The existing error properties are compatible with Problem Details for HTTP APIs, and they can be extended.

Siren doesn’t have a specific structure for errors, but we can easily model errors with the existing structures:

{
  "class": [
    "error"
  ],
  "properties": {
    "id": "b2613385-a3b2-47b7-b336-a85ac405bc66",
    "message": "There was a problem with one or more input values.",
    "code": "INVALIDINPUT"
  }
}

We can even go a step further and use entities to add detailed sub-errors. This would be very useful for validation errors, for instance, where you can report all errors to the client at once. We could also use the existing actions property to include a retry action. And we could use the error properties from Problem Details for HTTP APIs.

UBER has an explicit error structure:

{
  "uber": {
    "version": "1.0",
    "error": {
      "data": [
        { "name": "id", "value": "b2613385-a3b2-47b7-b336-a85ac405bc66" },
        { "name": "message", "value": "There was a problem with one or more input values." },
        { "name": "code", "value": "INVALIDINPUT" }
      ]
    }
  }
}

Again, we could reuse the error properties from Problem Details for HTTP APIs.

Conclusion

My advice would be to use the error structure of your existing media type and use the extensibility features to steal all the good ideas from Problem Details for HTTP APIs.

Advertisement

RESTBucks Evolved

~ Ray Sinnema ~ 3 Comments

restbucksThe book REST in Practice: Hypermedia and Systems Architecture uses an imaginary StarBucks-like company as its running example.

I think this is a great example, since most people are familiar with the domain.

The design is also simple enough to follow, yet complex enough to be interesting.

Problem Domain

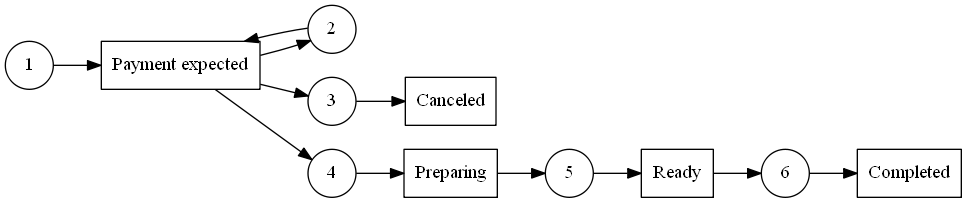

RESTbucks is about ordering and paying for coffee (or tea) and food. Here is the state diagram for the client:
restbucks-states

  1. Create the order
  2. Update the order
  3. Cancel the order
  4. Pay for the order
  5. Wait for the order to be prepared
  6. Take the order

Book Design

The hypermedia design in the book for the service is as follows:

  1. The client POSTs an order to the well-known RESTBucks URI. This returns the order URI in the Location header. The client then GETs the order URI
  2. The client POSTs an updated order to the order URI
  3. The client DELETEs the order URI
  4. The client PUTs a payment to the URI found by looking up a link with relation http://relations.restbucks.com/payment
  5. The client GETs the order URI until the state changes
  6. The client DELETEs the URI found by looking up a link with relation http://relations.restbucks.com/receipt

The book uses the specialized media type application/vnd.restbucks.order+xml for all messages exchanged.

Design Problems

Here are some of the problems that I have with the above approach:

  1. I think the well-known URI for the service (what Mike Amundsen calls the billboard URI) should respond to a GET, so that clients can safely explore it.
    This adds an extra message, but it also makes it possible to expand the service with additional functionality. For instance, when menus are added in a later chapter of the book, a second well-known URI is introduced. With a proper home document-like resource in front of the order service, this could have been limited to a new link relation.
  2. I’d rather use PUT for updating an order, since that is an idempotent method. The book states that the representation returned by GET contains links and argues that this implies that (1) PUT messages should also contain those links and (2) that that would be strange since those links are under control of the server.
    I disagree with both statements. A server doesn’t necessarily have to make the formats for GET and PUT exactly the same. Even if it did, some parts, like the links, could be optional. Furthermore, there is no reason the server couldn’t accept and ignore the links.
  3. The DELETE is fine.
    An alternative is to use PUT with a status of canceled, since we already have a status property anyway. That opens up some more possibilities, like re-instating a canceled order, but also introduces issues like garbage collection.
  4. I don’t think PUT is the correct method. Can the service really guarantee under all circumstances that my credit card won’t get charged twice if I repeat the payment?
    More importantly, this design assumes that payments are always for the whole order. That may seem logical at first, but once the book introduces vouchers that logic evaporates. If I have a voucher for a free coffee, then I still have to pay for anything to eat or for a second coffee.
    I’d create a collection of payments that the client should POST to. I’d also use the standard payment link relation defined in RFC 5988.
  5. This is fine.
  6. This makes no sense to me: taking the order is not the same as deleting the receipt. I need the receipt when I’m on a business trip, so I can get reimbursed!
    I’d rather PUT a new order with status taken.

Service Evolution

Suppose you’ve implemented your own service based on the design in the book.

evolutionFurther suppose that after reading the above, you want to change your service.

How can you do that without breaking any clients that may be out there?

After all, isn’t that what proponents tout as one of the advantages of a RESTful approach?

Well, yes and no. The media type defined in the book is at level 3a, and so will allow you to change URIs. However, the use of HTTP methods is defined out-of-band and you can’t easily change that.

Now imagine that the book would have used a full hypermedia type (level 3b) instead. In that case, the HTTP method used would be part of the message. The client would have to discover it, and the server could easily change it without fear of breaking clients.

Of course, this comes at the cost of having to build more logic into the client. That’s why I think it’s a good idea to use an existing full hypermedia type like Mason, Siren, or UBER. Such generic media types are much more likely to come with libraries that will handle this sort of work for the client.

REST Maturity

~ Ray Sinnema ~ 11 Comments

rest-maturity2In 2008, Leonard Richardson published his Maturity Heuristic that classified web services into three levels based on their use of URI, HTTP, and hypermedia.

Back then, most web services were stuck at either level 1 or 2. Unfortunately, not a whole lot has improved since then in that respect: so-called pragmatic REST is still the norm.

BTW, I really dislike the term “pragmatic REST”. It’s a cheap rhetoric trick to put opponents (“dogmatists”) on the defensive.

More importantly, it creates semantic diffusion: pragmatic REST is not actually REST according to the definition, so please don’t call it that way or else we’re going to have a hard time understanding each other. The term REST hardly means anything anymore these days.

Anyway, there is some light at the end of the tunnel: more services are now at level 3, where they serve hypermedia. A good example by a big name is Amazon’s AppStream API.

The difference between plain media types, like image/jpeg, and hypermedia types, like text/html, is of course the “hyper” part. Links allow a client to discover functionality without being coupled to the server’s URI structure.

JSONBTW, application/json is not a hypermedia type, since JSON doesn’t define links.

We can, of course, use a convention on top of JSON, for instance that there should be a links property with a certain structure to describes the links, like Spring HATEOAS does.

The problem with conventions is that they are out-of-band communication, and a client has no way of knowing for sure whether that convention is followed when it sees a Content-Type of application/json. It’s therefore much better to use a media type that turns the convention into a rule, like HAL does.

Speaking of out-of-band communication, the amount of it steadily decreases as we move up the levels. This is a very good thing, as it reduces the amount of coupling between clients and servers.

Level 3 isn’t really the end station, however. Even with a hypermedia format like HAL there is still a lot of out-of-band communication.

HALHAL doesn’t tell you which HTTP method to use on a particular link, for instance.

The client can only know because a human has programmed it with that knowledge, based on some human-readable description that was published somewhere.

Imagine that the human Web would work this way. We wouldn’t be able to use the same browser to shop at Amazon and read up at Wikipedia and do all those other things we take for granted. Instead, we would need an Amazon Browser, a Wikipedia Browser, etc. This is what we do with APIs today!

Moving further into the direction of less out-of-band communication requires more than just links. Links only specify the URI part and we also need the HTTP and media type parts inside our representations. We might call this level 3b, Full Hypermedia.

Siren gives you this. Uber even goes a step further and also abstracts the protocol, so that you can use it with, say, CoAP rather than HTTP.

These newer hypermedia types allow for the use of a generic client that can handle any REST API that serves that hypermedia type, just like a web browser can be used against anything that serves HTML. An example of such an effort is the HAL browser (even though HAL is stuck at level 3a).

However, even with the inclusion of protocol, media type, and method in the representation, we still need some out-of-band communication.

The HAL browser can navigate any API that serves HAL, but it doesn’t understand the responses it gets. Therefore it can’t navigate links on its own to reach a certain goal. For true machine-to-machine (M2M) communication, we still need more.

ALPSIf we ever get the whole semantic web sorted out, this might one day be the final answer, but I’m not holding my breath.

In the meantime we’ll have to settle for partial answers.

One piece of the puzzle could be to define application semantics using profiles, for instance in the ALPS format. We might call this level 4, Semantic Profile.

We’d still need a human to read out-of-band communication and build a special-purpose client for M2M scenarios. But this client could handle all services in the application domain it is programmed to understand, not just one.

Also, the human could be helped a lot by a generic API browser that fetches ALPS profiles to explain the API.

All this is currently far from a reality. But we can all work towards this vision by choosing generic, full-featured hypermedia types like Siren or Uber for our APIs and by documenting our application semantics using profiles in ALPS.

If you need more convincing then please read RESTful Web APIs, which Leonard Richardson co-wrote with Uber and ALPS creator Mike Amundsen. This is easily the best book on REST on the market today.

The Decorator Pattern

~ Ray Sinnema ~ Leave a comment

decoratingOne design pattern that I don’t see being used very often is Decorator.

I’m not sure why this pattern isn’t more popular, as it’s quite handy.

The Decorator pattern allows one to add functionality to an object in a controlled manner. This works at runtime, even with statically typed languages!

The decorator pattern is an alternative to subclassing. Subclassing adds behavior at compile time, and the change affects all instances of the original class; decorating can provide new behavior at run-time for individual objects.

The Decorator pattern is a good tool for adhering to the open/closed principle.

Some examples may show the value of this pattern.

Example 1: HTTP Authentication

Imagine an HTTP client, for example one that talks to a RESTful service.

Some parts of the service are publicly accessible, but some require the user to log in. The RESTful service responds with a 401 Unauthorized status code when the client tries to access a protected resource.

Changing the client to handle the 401 leads to duplication, since every call could potentially require authentication. So we should extract the authentication code into one place. Where would that place be, though?

Here’s where the Decorator pattern comes in:

public class AuthenticatingHttpClient
    implements HttpClient {

  private final HttpClient wrapped;

  public AuthenticatingHttpClient(HttpClient wrapped) {
    this.wrapped = wrapped;
  }

  @Override
  public Response execute(Request request) {
    Response response = wrapped.execute(request);
    if (response.getStatusCode() == 401) {
      authenticate();
      response = wrapped.execute(request);
    }
    return response;
  }

  protected void authenticate() {
    // ...
  }

}

A REST client now never has to worry about authentication, since the AuthenticatingHttpClient handles that.

Example 2: Caching Authorization Decisions

OK, so the user has logged in, and the REST server knows her identity. It may decide to allow access to a certain resource to one person, but not to another.

IOW, it may implement authorization, perhaps using XACML. In that case, a Policy Decision Point (PDP) is responsible for deciding on access requests.

Checking permissions it often expensive, especially when the permissions become more fine-grained and the access policies more complex. Since access policies usually don’t change very often, this is a perfect candidate for caching.

This is another instance where the Decorator pattern may come in handy:

public class CachingPdp implements Pdp {

  private final Pdp wrapped;

  public CachingPdp(Pdp wrapped) {
    this.wrapped = wrapped;
  }

  @Override
  public ResponseContext decide(
      RequestContext request) {
    ResponseContext response = getCached(request);
    if (response == null) {
      response = wrapped.decide(request);
      cache(request, response);
    }
    return response;
  }

  protected ResponseContext getCached(
      RequestContext request) {
    // ...
  }

  protected void cache(RequestContext request,
      ResponseContext response) {
    // ...
  }

}

As you can see, the code is very similar to the first example, which is why we call this a pattern.

As you may have guessed from these two examples, the Decorator pattern is really useful for implementing cross-cutting concerns, like the security features of authentication, authorization, and auditing, but that’s certainly not the only place where it shines.

If you look carefully, I’m sure you’ll be able to spot many more opportunities for putting this pattern to work.

REST 101 For Developers

~ Ray Sinnema ~ 1 Comment

rest-easy

Local Code Execution

Functions in high-level languages like C are compiled into procedures in assembly. They add a level of indirection that frees us from having to think about memory addresses.

Methods and polymorphism in object-oriented languages like Java add another level of indirection that frees us from having to think about the specific variant of a set of similar functions.

Despite these indirections, methods are basically still procedure calls, telling the computer to switch execution flow from one memory location to another. All of this happens in the same process running on the same computer.

Remote Code Execution

This is fundamentally different from switching execution to another process or another computer. Especially the latter is very different, as the other computer may not even have the same operating system through which programs access memory.

It is therefore no surprise that mechanisms of remote code execution that try to hide this difference as much as possible, like RMI or SOAP, have largely failed. Such technologies employ what is known as Remote Procedure Calls (RPCs).

rpcOne reason we must distinguish between local and remote procedure calls is that RPCs are a lot slower.

For most practical applications, this changes the nature of the calls you make: you’ll want to make less remote calls that are more coarsely grained.

Another reason is more organizational than technical in nature.

When the code you’re calling lives in another process on another computer, chances are that the other process is written and deployed by someone else. For the two pieces of code to cooperate well, some form of coordination is required. That’s the price we pay for coupling.

Coordinating Change With Interfaces

We can also see this problem in a single process, for instance when code is deployed in different jar files. If you upgrade a third party jar file that your code depends on, you may need to change your code to keep everything working.

Such coordination is annoying. It would be much nicer if we could simply deploy the latest security patch of that jar without having to worry about breaking our code. Fortunately, we can if we’re careful.

interfaceInterfaces in languages like Java separate the public and private parts of code.

The public part is what clients depend on, so you must evolve interfaces in careful ways to avoid breaking clients.

The private part, in contrast, can be changed at will.

From Interfaces to Services

In OSGi, interfaces are the basis for what are called micro-services. By publishing services in a registry, we can remove the need for clients to know what object implements a given interface. In other words, clients can discover the identity of the object that provides the service. The service registry becomes our entry point for accessing functionality.

There is a reason these interfaces are referred to as micro-services: they are miniature versions of the services that make up a Service Oriented Architecture (SOA).

A straightforward extrapolation of micro-services to “SOA services” leads to RPC-style implementations, for instance with SOAP. However, we’ve established earlier that RPCs are not the best way to invoke remote code.

Enter REST.

RESTful Services

rest-easyRepresentational State Transfer (REST) is an architectural style that brings the advantages of the Web to the world of programs.

There is no denying the scalability of the Web, so this is an interesting angle.

Instead of explaining REST as it’s usually done by exploring its architectural constraints, let’s compare it to micro-services.

A well-designed RESTful service has a single entry point, like the micro-services registry. This entry point may take the form of a home resource.

We access the home resource like any other resource: through a representation. A representation is a series of bytes that we need to interpret. The rules for this interpretation are given by the media type.

Most RESTful services these days serve representations based on JSON or XML. The media type of a resource compares to the interface of an object.

Some interfaces contain methods that give us access to other interfaces. Similarly, a representation of a resource may contain hyperlinks to other resources.

Code-Based vs Data-Based Services

soapThe difference between REST and SOAP is now becoming apparent.

In SOAP, like in micro-services, the interface is made up of methods. In other words, it’s code based.

In REST, on the other hand, the interface is made up of code and data. We’ve already seen the data: the representation described by the media type. The code is the uniform interface, which means that it’s the same (uniform) for all resources.

In practice, the uniform interface consists of the HTTP methods GET, POST, PUT, and DELETE.

Since the uniform interface is fixed for all resources, the real juice in any RESTful service is not in the code, but in the data: the media type.

Just as there are rules for evolving a Java interface, there are rules for evolving a media type, for example for XML-based media types. (From this it follows that you can’t use XML Schema validation for XML-based media types.)

Uniform Resource Identifiers

So far I haven’t mentioned Uniform Resource Identifiers (URIs). The documentation of many so-called RESTful services may give you the impression that they are important.

identityHowever, since URIs identify resources, their equivalent in micro-services are the identities of the objects implementing the interfaces.

Hopefully this shows that clients shouldn’t care about URIs. Only the URI of the home resource is important.

The representation of the home resource contains links to other resources. The meaning of those links is indicated by link relations.

Through its understanding of link relations, a client can decide which links it wants to follow and discover their URIs from the representation.

Versions of Services

evolutionAs much as possible, we should follow the rules for evolving media types and not introduce any breaking changes.

However, sometimes that might be unavoidable. We should then create a new version of the service.

Since URIs are not part of the public interface of a RESTful API, they are not the right vehicle for relaying version information. The correct way to indicate major (i.e. non-compatible) versions of an API can be derived by comparison with micro-services.

Whenever a service introduces a breaking change, it should change its interface. In a RESTful API, this means changing the media type. The client can then use content negotiation to request a media type it understands.

What Do You Think?

what-do-you-thinkLiterature explaining how to design and document code-based interfaces is readily available.

This is not the case for data-based interfaces like media types.

With RESTful services becoming ever more popular, that is a gap that needs filling. I’ll get back to this topic in the future.

How do you design your services? How do you document them? Please share your ideas in the comments.

Securing HTTP-based APIs With Signatures

~ Ray Sinnema ~ Leave a comment

CloudSecurityI work at EMC on a platform on top of which SaaS solutions can be built.

This platform has a RESTful HTTP-based API, just like a growing number of other applications.

With development frameworks like JAX-RS, it’s relatively easy to build such APIs.

It is not, however, easy to build them right.

Issues With Building HTTP-based APIs

The problem isn’t so much in getting the functionality out there. We know how to develop software and the available REST/HTTP frameworks and libraries make it easy to expose the functionality.

That’s only half the story, however. There are many more -ilities to consider.

rest-easyThe REST architectural style addresses some of those, like scalability and evolvability.

Many HTTP-based APIs today claim to be RESTful, but in fact are not. This means that they are not reaping all of the benefits that REST can bring.

I’ll be talking more about how to help developers meet all the constraints of the REST architectural style in future posts.

Today I want to focus on another non-functional aspect of APIs: security.

Security of HTTP-based APIs

In security, we care about the CIA-triad: Confidentiality, Integrity, and availability.

Availability of web services is not dramatically different from that of web applications, which is relatively well understood. We have our clusters, load balancers, and what not, and usually we are in good shape.

Confidentiality and integrity, on the other hand, both require proper authentication, and here matters get more interesting.

Authentication of HTTP-based APIs

authenticationFor authentication in an HTTP world, it makes sense to look at HTTP Authentication.

This RFC describes Basic and Digest authentication. Both have their weaknesses, which is why you see many APIs use alternatives.

Luckily, these alternatives can use the same basic machinery defined in the RFC. This machinery includes status code 401 Unauthorized, and the WWW-Authenticate, Authentication-Info, and Authorization headers. Note that the Authorization header is unfortunately misnamed, since it’s used for authentication, not authorization.

The final piece of the puzzle is the custom authentication scheme. For example, Amazon S3 authentication uses the AWS custom scheme.

Authentication of HTTP-based APIs Using Signatures

The AWS scheme relies on signatures. Other services, like EMC Atmos, use the same approach.

It is therefore good to see that a new IETF draft has been proposed to standardize the use of signatures in HTTP-based APIs.

Standardization enables the construction of frameworks and libraries, which will drive down the cost of implementing authentication and will make it easier to build more secure APIs.

What do you think?

what-do-you-thinkIf you’re in the HTTP API building and/or consuming business –and who isn’t these days– then please go ahead and read the draft and provide feedback.

I’m also interested in your experiences with building or consuming secure HTTP APIs. Please leave a comment on this post.

Book review: Secure Programming with Static Analysis

~ Ray Sinnema ~ 1 Comment

Secure Programming with Static AnalysisOne thing that should be part of every Security Development Lifecycle (SDL) is static code analysis.

This topic is explained in great detail in Secure Programming with Static Analyis.

Chapter 1, The Software Security Problem, explains why security is easy to get wrong and why typical methods for catching bugs aren’t effective for finding security vulnerabilities.

Chapter 2, Introduction to Static Analysis, explains that static analysis involves a software program checking the source code of another software program to find structural, quality, and security problems.

Chapter 3, Static Analysis as Part of Code Review, explains how static code analysis can be integrated into a security review process.

Chapter 4, Static Analysis Internals, describes how static analysis tools work internally and what trade-offs are made when building them.

This concludes the first part of the book that describes the big picture. Part two deals with pervasive security problems.

InputChapter 5, Handling Input, describes how programs should deal with untrustworthy input.

Chapter 6, Buffer Overflow, and chapter 7, Bride to Buffer Overflow, deal with buffer overflows. These chapters are not as interesting for developers working with modern languages like Java or C#.

Chapter 8, Errors and Exceptions, talks about unexpected conditions and the link with security issues. It also handles logging and debugging.

Chapter 9, Web Applications, starts the third part of the book about common types of programs. This chapter looks at security problems specific to the Web and HTTP.

Chapter 10, XML and Web Services, discusses the security challenges associated with XML and with building up applications from distributed components.

CryptographyChapter 11, Privacy and Secrets, switches the focus from AppSec to InfoSec with an explanation of how to protect private information.

Chapter 12, Privileged Programs, continues with a discussion on how to write programs that operate with different permissions than the user.

The final part of the book is about gaining experience with static analysis tools.

Chapter 13, Source Code Analysis Exercises for Java, is a tutorial on how to use Fortify (a trial version of which is included with the book) on some sample Java projects.

Chapter 14, Source Code Analysis Exercises for C does the same for C programs.

rating-five-out-of-five

This book is very useful for anybody working with static analysis tools. Its description of the internals of such tools helps with understanding how to apply the tools best.

I like that the book is filled with numerous examples that show how the tools can detect a particular type of problem.

Finally, the book makes clear that any static analysis tool will give both false positives and false negatives. You should really understand security issues yourself to make good decisions. When you know how to do that, a static analysis tool can be a great help.

Supporting Multiple XACML Representations

~ Ray Sinnema ~ Leave a comment

We’re in the process of registering an XML media type for the eXtensible Access Control Markup Language (XACML). Simultaneously, the XACML Technical Committee is working on a JSON format.

Both media types are useful in the context of another committee effort, the REST profile. This post explains what benefit these profiles will bring once approved, and how to support them in clients and servers.

Media Types Support Content Negotiation

With the REST profile, any application can communicate with a Policy Decision Point (PDP) in a RESTful manner. The media types make it possible to communicate with such a PDP in a manner that is most convenient for the client, using a process called content negotiation.

For instance, a web application that is mainly implemented in JavaScript may prefer to use JSON for communication with the PDP, to avoid having to bring in infrastructure to deal with XML.

Content negotiation is not just a convenience feature, however. It also facilitates evolution.

A server with many clients that understand 2.0 may start also serving 3.0, for instance. The older clients stay functional using 2.0, whereas newer clients can communicate in 3.0 syntax with the same server.

This avoids having to upgrade all the clients at the same time as the server.

So how does a server that supports multiple versions and/or formats know which one to serve to a particular client? The answer is the Accept HTTP header. For instance, a client can send Accept: application/xacml+xml; version=2.0 to get an XACML 2.0 XML format, or Accept: application/xacml+json; version=3.0 to get an XACML 3.0 JSON answer.

The value for the Accept header is a list of media types that are acceptable to the client, in decreasing order of precedence. For instance, a new client could prefer 3.0, but still work with older servers that only support 2.0 by sending Accept: application/xacml+xml; version=3.0, application/xacml+xml; version=2.0.

Supporting Multiple Versions and Formats

So there is value for both servers and clients to support multiple versions and/or formats. Now how does one go about implementing this? The short answer is: using indirection.

The longer answer is to make an abstraction for the version/format combination. We’ll dub this abstraction a representation.

For instance, an XACML request is really not much more than a collection of categorized attributes, while a response is basically a collection of results.

Instead of working with, say, the XACML 3.0 XML form of a request, the client or server code should work with the abstract representation. For each version/format combination, you then add a parser and a builder.

The parser reads the concrete syntax and creates the abstract representation from it. Conversely, the builder takes the abstract representation and converts it to the desired concrete syntax.

In many cases, you can re-use parts of the parsers and builders between representations. For instance, all the XML formats of XACML have in common that they require XML parsing/serialization.

In a design like this, no code ever needs to be modified when a new version of the specification or a new serialization format comes out. All you have to do is add a parser and a builder, and all the other code can stay the way it is.

The only exception is when a new version introduces new capabilities and your code wants to use those. In that case, you probably must also change the abstract representation to accommodate the new functionality.
