Adventures in JavaScript: Objects and Prototypes

green-lanternLast time, I got started with JavaScript by doing the Roman Numerals kata.

I got the kata to work, but like all first steps, it felt awkward. The main reason is that JavaScript has a different object model than I’m used to.

Let’s suit up and shine some light on that model.

Objects

Things in JavaScript are either primitives or objects.

Objects can be created using literals:

var romanNumeral = {
  symbol: "i",
  value: 1
};

A new object can also be created by the new operator and a constructor. The constructor can refer to the newly created object with this:

function RomanNumeral(symbol, value) {
  this.symbol = symbol;
  this.value = value;
}

thingIn JavaScript, an object represents a table relating names to values.

The constructor above relates the name string to the object provided in the name parameter. (Let’s hope that object is actually a string.)

Name and value together are referred to as a property.

Values are things again, so either primitives or objects. Functions are objects too, as we’ll see below.

Here’s how someone with a Java background like me might initially try to code a JavaBean-like object:

function RomanNumeral(symbol, value) {
  this.symbol = symbol;
  this.value = value;

  this.getSymbol = function() {
    return this.symbol;
  };
  this.getValue = function() {
    return this.value;
  };
}

There are some problems with this piece of code, however.

Methods

daredevilThe first issue with the JavaBean-like code is that it’s built on the mistaken assumption that the symbol and value properties are private.

The properties of a JavaScript object are automatically exposed. Nobody is blind to your internals in JavaScript!

Luckily, JavaScript does provide a reliable mechanism for information hiding, namely the closure:

function RomanNumeral(symbol, value) {
  this.symbol = function() {
    return this.symbol;
  };
  this.value = function() {
    return value;
  };
}

Here the value of the symbol property is a function rather than a string. Functions in JavaScript are first-class citizens and can be passed around like any other object and then be called later.

Functions can refer to any variable in their scope, including the parameters and variables of outer functions.

So the closure assigned to the symbol property can refer to the symbol parameter provided to the constructor even when that parameter is out of scope at the place the closure is actually called!

Class Methods vs Instance Methods

The second problem with the initial code, and also with the improved code above, is that it creates new function objects and assigns them to the object’s properties every time an instance is created.

In the closure case, that is actually what we want, since the closure should have the constructor’s parameters in its scope for it to work properly.

In the original code, however, we end up with too many function objects. There will be one getSymbol function object per instance, for example. We can reduce that overhead by defining the function on the prototype:

function RomanNumeral(symbol, value) {
  this.symbol = symbol;
  this.value = value;
}

RomanNumeral.prototype.getSymbol = function() {
  return this.symbol;
};
RomanNumeral.prototype.getValue = function() {
  return this.value;
};

prototypeEvery object is associated with a prototype object. The prototype property is set automatically by the constructor.

With the above code, all objects created with new RomanNumeral(...) still have their own symbol property.

But now they all share the same instance of the getSymbol() function, because they access it through the prototype property that points to a separate object.

We can use the same trick with non-function properties too:

function RomanNumerals() {
  // ...
}

RomanNumerals.prototype.ROMAN_NUMERALS = [
  // ... other numerals ...
  new RomanNumeral("iv", "4"),
  new RomanNumeral("i", "1")
];

This is analogous to static variables in Java.

Subclasses

Let’s leave the Roman numerals behind and move into more interesting territory. Superheros have the ability to display their superpowers:

function SuperHero(name) {
  this.name = name;
}

SuperHero.prototype.showPowers = function() {
  beAwesome();
};

Some superheros can fly and therefore have an altitude:

function FlyingSuperHero(name) {
  SuperHero.call(name);
  this.altitude = 0;
}

FlyingSuperHero.prototype = Object.create(
    SuperHero.prototype);

FlyingSuperHero.prototype.flyTo = function(altitude) {
  this.altitude = altitude;
};

avengersHere we see some very powerful things at work.

First, a function is an object and can therefore have properties. The call() method is one such property.

Second, prototype is a property too, and can be set! We use this to create a new object with its prototype set to the object that represents the base class’ prototype.

Note that since objects are basically hash tables, we can’t simply override showPowers and call the super class’ version. There are some ways to achieve that, but they don’t look pretty.

This goes to show that you can’t force the Java model onto JavaScript without pain. To be successful in JavaScript, you must embrace its object model.

Reflection

It will probably take me a while to get used to JavaScript’s different object model.

spidermanI freaked out when I first realized that any code can change any property and that different instances of a “class” can have different methods.

Coming from a strongly typed world, that seems great power that is easy to abuse.

Better handle that superpower wisely!

Advertisements

Adventures in JavaScript: Getting Started

Node.jsOne of the high potentials for a Frictionless Development Environment (FDE) is Cloud9.

It is one of a growing number of web applications that uses JavaScript as the programming language for both front-end and back-end. The latter brought to you by Node.js.

So I thought it was time to start playing around with JavaScript and Node. Here is an account of my very first adventure into this Brave New World.

Preparations: Adding JavaScript Support to Eclipse

To keep the number of changes low, I wanted to keep my trusted old Eclipse. So the first step was to install Nodeclipse and jshint-eclipse.

To support documentation in the Markdown format that Node uses, I installed the Markdown Editor plugin for Eclipse.

This left me with nothing for unit tests. So I installed the JavaScript tools from Eclipse. That gave me some JS support, but nothing for creating unit tests.

Some googling told me there is such a thing as JsUnit, the JS port of my beloved JUnit. Unfortunately it doesn’t seem to come with Eclipse support, even though this thread indicates it does (or did).

JsTestDriverMaybe I’m just doing it wrong. I’d appreciate any hints in the comments.

Some more googling informed me that Orion is using JsTestDriver.

This introduction to JsTestDriver explains in detail how it works.

First Exercise: Roman Numerals

Now that I’m all set up, it’s time to do a little exercise to get my feet wet. For this I picked the Roman Numerals kata.

I started out by following this JsTestDriver example. I created a new JavaScript project in Eclipse, added src/main/js and src/test/js folders, and created the JsTestDriver configuration file:

server: http://localhost:9876

load:
  - src/main/js/*.js
  - src/test/js/*.js

Next, I opened the JsTestDriver window using Window|Show View|Other|JavaScript|JsTestDriver and started the JsTestDriver server. I then opened the client in FireFox at http://127.0.0.1:42442/capture.

The next step was to create a new run configuration: Run|Run Configurations|JsTestDriver Test. I selected the project and the JsTestDriver configuration within the project, and checked Run on Every Save.

Now everything is set up to start the TDD cycle. First a test:

RomanNumeralsTest = TestCase("RomanNumeralsTest");

RomanNumeralsTest.prototype.testArabicToRoman
    = function() {
  var romanNumerals = new TestApp.RomanNumerals();

  assertEquals("i", romanNumerals.arabicToRoman(1));
};

And then the implementation:

TestApp = { };

TestApp.RomanNumerals = function() { };


TestApp.RomanNumerals.prototype.arabicToRoman
    = function (arabic) {
  return null;
};

I completed the rest of the kata as usual.

Reflections

The cool thing about JsTestDriver is that it automatically runs all the tests every time you change something. This shortens the feedback cycle and keeps you in the flow. For Java, InfiniTest does the same.

The problem with my current tool chain is that support for renaming is extremely limited. I got Operation unavailable on the current selection. Select a JavaScript project, source folder, resource, or a JavaScript file, or a non-readonly type, var, function, parameter, local variable, or type variable.

Other refactorings do exist, like Extract Local Variable and Extract Method, but they mess up the formatting. They also give errors, but then work when trying again.

All in all I feel satisfied with the first steps I’ve taken on this journey. I’m a little worried about the stability of the tools. I also realize I have a more to learn about JavaScript prototypes.

Bridging the Client-Server Divide

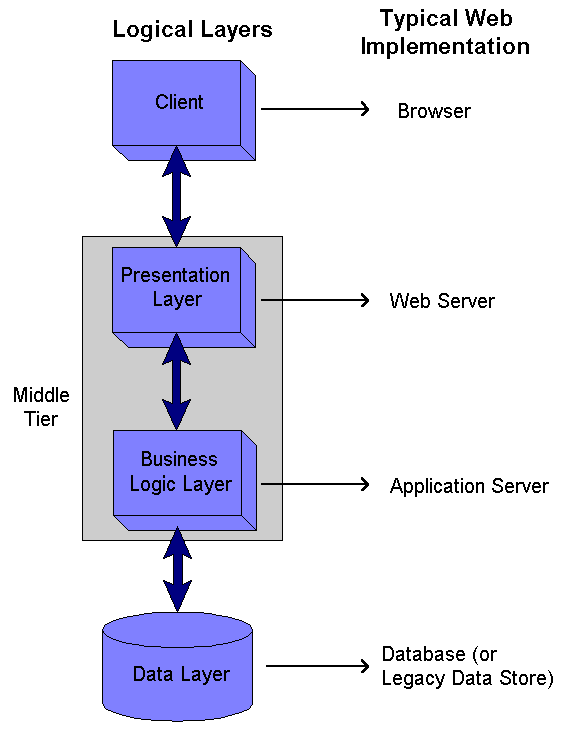

webapp-architectureMost software these days is delivered in the form of web applications, and the move towards cloud computing will only emphasize this trend.

Web apps consist of client and server parts, where the client part has been getting bigger lately to deliver a richer user experience.

This split has implications for developers, because the technologies used on the client and server parts are often different.

The client is ruled by HTML, CSS, and JavaScript, while the server is most often developed using JVM or .NET based languages like Java and C#.

Disadvantages of Different Client and Server Technologies

Developers of web applications risk becoming either specialists confined to a single part of the stack or polyglot programmers.

Polyglot programming is the practice of knowing and using many programming languages. There are both advantages and disadvantages associated with polyglot programming. I believe the overriding disadvantage is the context switching involved, which degrades productivity and opens the doors to extra bugs.

Being a specialist has advantages and disadvantages as well. A big disadvantage I see is the “us versus them”, or “not my problem” culture that can arise. In general, Agile teams prefer generalists.

Bringing Server Technologies to the Client

Many attempts have been made at bridging the gap between client and server. Most of these attempts were about bringing server-side technologies to the client.

GWTJava on the client has failed to reached widespread adoption, and now that many people advice to disable Java applets altogether because of security reasons it seems increasingly unlikely that it ever will.

Bringing .NET to the client has likewise failed as Silverlight adoption continues to drop.

Another idea is to translate from server to client technologies. Many languages can now be compiled to JavaScript. The most mature effort is Google Web Toolkit (GWT), which translates from Java. The main problem with GWT is that it supports only a small subset of Java.

All in all I don’t feel there currently is a satisfactory way of using server technologies on the client.

Bringing Client Technologies to the Server

So what about the reverse? There is really only one client-side technology worth looking at today: JavaScript. The only other rival, Flash, is losing out quickly due to lack of support from Apple and the rise of HTML5.

Node.jsJavaScript on the server is starting to make inroads, thanks to the Node.js platform.

It is used by the Cloud9 IDE, for example, and supported by Platform-as-a-Service providers like CloudFoundry and Heroku.

What do you think?

If I had to put my money on any unification approach, it would be Node.js.

Do you agree? What needs to happen to make this a common way of developing web apps? Please let me know your thoughts in the comments.

Securing Mobile Java Code

Mobile Code is code sourced from remote, possibly untrusted systems, that are executed on your local system. Mobile code is an optional constraint in the REST architectural style.

This post investigates our options for securely running mobile code in general, and for Java in particular.

Mobile Code

Examples of mobile code range from JavaScript fragments found in web pages to plug-ins for applications like FireFox and Eclipse.

Plug-ins turn a simple application into an extensible platform, which is one reason they are so popular. If you are going to support plug-ins in your application, then you should understand the security implications of doing so.

Types of Mobile Code

Mobile code comes in different forms. Some mobile code is source code, like JavaScript.

Mobile code in source form requires an interpreter to execute, like JägerMonkey in FireFox.

Mobile code can also be found in the form of executable code.

This can either be intermediate code, like Java applets, or native binary code, like Adobe’s Flash Player.

Active Content Delivers Mobile Code

A concept that is related to mobile code is active content, which is defined by NIST as

Electronic documents that can carry out or trigger actions automatically on a computer platform without the intervention of a user.

Examples of active content are HTML pages or PDF documents containing scripts and Office documents containing macros.

Active content is a vehicle for delivering mobile code, which makes it a popular technology for use in phishing attacks.

Security Issues With Mobile Code

There are two classes of security problems associated with mobile code.

The first deals with getting the code safely from the remote to the local system. We need to control who may initiate the code transfer, for example, and we must ensure the confidentiality and integrity of the transferred code.

From the point of view of this class of issues, mobile code is just data, and we can rely on the usual solutions for securing the transfer. For instance, XACML may be used to control who may initiate the transfer, and SSL/TLS may be used to protect the actual transfer.

It gets more interesting with the second class of issues, where we deal with executing the mobile code. Since the remote source is potentially untrusted, we’d like to limit what the code can do. For instance, we probably don’t want to allow mobile code to send credit card data to its developer.

However, it’s not just malicious code we want to protect ourselves from.

A simple bug that causes the mobile code to go into an infinite loop will threaten your application’s availability.

The bottom line is that if you want your application to maintain a certain level of security, then you must make sure that any third-party code meets that same standard. This includes mobile code and embedded libraries and components.

That’s why third-party code should get a prominent place in a Security Development Lifecycle (SDL).

Safely Executing Mobile Code

In general, we have four types of safeguards at our disposal to ensure the safe execution of mobile code:

  • Proofs
  • Signatures
  • Filters
  • Cages (sandboxes)

We will look at each of those in the context of mobile Java code.

Proofs

It’s theoretically possible to present a formal proof that some piece of code possesses certain safety properties. This proof could be tied to the code and the combination is then proof carrying code.

After download, the code could be checked against the code by a verifier. Only code that passes the verification check would be allowed to execute.

Updated for Bas’ comment:
Since Java 6, the StackMapTable attribute implements a limited form of proof carrying code where the type safety of the Java code is verified. However, this is certainly not enough to guarantee that the code is secure, and other approaches remain necessary.

Signatures

One of those approaches is to verify that the mobile code is made by a trusted source and that it has not been tampered with.

For Java code, this means wrapping the code in a jar file and signing and verifying the jar.

Filters

We can limit what mobile content can be downloaded. Since we want to use signatures, we should only accept jar files. Other media types, including individual .class files, can simply be filtered out.

Next, we can filter out downloaded jar files that are not signed, or signed with a certificate that we don’t trust.

We can also use anti-virus software to scan the verified jars for known malware.

Finally, we can use a firewall to filter out any outbound requests using protocols/ports/hosts that we know our code will never need. That limits what any code can do, including the mobile code.

Cages/Sandboxes

After restricting what mobile code may run at all, we should take the next step: prevent the running code from doing harm by restricting what it can do.

We can intercept calls at run-time and block any that would violate our security policy. In other words, we put the mobile code in a cage or sandbox.

In Java, cages can be implemented using the Security Manager. In a future post, we’ll take a closer look at how to do this.

Performance tuning a GWT application

With Google Web Toolkit (GWT), you write your AJAX front-end in the Java programming language which GWT then cross-compiles into optimized JavaScript that automatically works across all major browsers.

…claims Google. And I must say, I’m pretty impressed by the ease of development GWT offers. I’ve used it at work on a project that I probably couldn’t have done without it, given my poor JavaScript skills. Especially the fact that you don’t have to worry about whether your code works in all browsers is great.

There are a couple of caveats, however:

  • The set of supported Java classes is limited, which sometimes causes confusion. For instance, there is a Character class, but the isWhitespace() method is not supported. And neither is List.subList().
  • Serialization works differently from the Java standard.
  • You can’t work with regular W3C DOM objects on the client. Instead, GWT provides it’s own DOM hierarchy.
  • Even though Google claims that GWT “allows developers to quickly build and maintain complex yet highly performant JavaScript front-end applications in the Java programming language”, performance can be a problem.

The purpose of this post is to elaborate on that last point.

Java isn’t JavaScript

Most developers evolve a sense of intuition about what type of code can be a performance problem, and what not. The problem with GWT development, however, is that even though you write Java code, the browser executes JavaScript code. So any intuitions about Java performance are misleading.

Therefore, your usual rules of thumb won’t work in GWT development. Here’s a couple that may.

Serialization is slow

Our application created a domain model on the server, serialized that to the client, and had the client render it. The problem was that the model could become quite large, consisting of thousands of objects. This is not something that GWT currently handles well. Serialization performance appears to be proportional to the number of objects, not just to their total size. Therefore, we translated the model to XML, and serialized that as a single string. This was way faster.

However, this meant that we needed to parse the XML on the client side to reconstruct our model. GWT provides an XMLParser class to handle just that. This class is very efficient in parsing XML, but it turned out that traversing the resulting DOM document was still too slow.

So I wrote a dedicated XML parser, one that can only parse the subset of XML documents that represent our domain model. This parser builds the domain model directly, without intermediate representation. This proved to be faster than the generic approach, but only after being very careful with handling strings.

Some string handling is slow, particularly in Internet Explorer

Java developers know that string handling can be a performance bottleneck. This is also true for GWT development, but not in quite the same way. For instance, using StringBuffer or StringBuilder is usually sufficient for improving String handling performance in Java code. But not so in JavaScript. StringBuffer.append() can be very slow on Internet Explorer, for instance.

GWT 1.6 will contain its own version of StringBuffer that will alleviate some of these problems. Since 1.6 isn’t released yet, we just copied this class into our project.

But even with the new StringBuffer class, you still need to be careful when dealing with strings. Some of the StringBuffer methods are implemented by calling toString() and doing something on the result. That can be a real performance killer. So anything you can do to stay away from substring(), charAt(), etc. will help you. This can mean that it’s sometimes better to work with plain Strings instead of StringBuffers!

Tables

For displaying data in a table-like format, you can use the Grid widget. This is not terribly fast, however, so you may want to consider the bulk table renderers.

The downside of these is that they translate any widgets you insert into the table to HTML, and you loose all the functionality to attached to them, like click handling. Instead, you can add a TableListener, that has a onCellClicked() method.

Varargs are slow

Variable argument lists are sometimes quite handy. However, we’ve found that they come at a severe performance penalty, because a JavaScript array needs to be created to wrap the arguments. So if at all possible, use fixed argument lists, even though this may be less convenient from a code writing/maintaining perspective.

Don’t trust rules of thumb, use a profiler

The problem with rules of thumb is that they are just that: principles with broad application that are not intended to be strictly accurate or reliable for every situation. You shouldn’t put all your trust in them, but measure where the pain really is. This means using a profiler.

You could, of course, run your favorite Java profiler against hosted mode to get a sense of performance of your code. But that would be besides the point. Your Java code is compiled to JavaScript and it is the JavaScript code that gets executed by the browser. So you should use a JavaScript profiler.

We used Firebug to profile the compiled JavaScript code and this helped us enormously. As usual with profiling, we found performance bottlenecks that we didn’t anticipate. As a result, we were able to make our application load over 60 times faster! (on Internet Explorer 7)

Performance in different browsers

The only problem with Firebug is that it’s a FireFox plugin, and therefore not available for Internet Explorer. [Firebug Lite doesn’t contain a profiler.] Not that I personally would want to use IE, but our customers do, unfortunately.

The irony is that you need a JavaScript profiler in Internet Explorer the most: FireFox is unbelievably much faster than Internet Explorer when it comes to processing JavaScript, especially with string handling. For instance, for one data set, FireFox 3 loaded the page in 51 seconds, while Internet Explorer 7 took 12 minutes and 4 seconds!

Internet Explorer 8 will supposedly be better:

We have made huge improvements to widely-used JScript functionality including faster string, array, and lookup operations.

We’ll have to see how that works out when IE8 is released…

BTW, if you’re interested in browser performance, check out this comparison.
